LTE GSM 4G Alarm System DIY 32 Sensors 4 Wireless Sirens 6 Wifi Camera

LTE Gsm 4g Dialer for alarm, DIY 32 sensors, 4 Wireless Sirens, 6 Wifi camera

Features

•  Can be 4g router by creating Wi-Fi ap
•  Wireless trigger Wi-Fi camera push video to user cell phone when alarm
•  32 wileless zones, can set Normal/Bypass mode, 24-hour for each zone
•  Smart mode for wirless PIR, door detector, support offline alarm, low power alarm, not ready remind
•  Up to 4 wireless sirens are avaliable
•  Configurable schedule for arm and disarm
•  Send sms reminder when arm or disarm
•  Support night-silence mode from 21:00pm to 07:00am
•  Temperature low or high alarm by sms, support output linkage
•  SMS reminder for power lost and recover
•  Can set up to 10 user phone numbers
•  Setting or operating by sms command, e.g. remote add/edit/delete phone group
•  Can setup schedule to execute actions
•  Inside rechargeable battery with 10 hours life
•  Automatically update internal clock via sms
•  Time stamped in alarm or recover messages
•  Option GPS module
•  Setup by configure software
•  Using by APP

Interface

•  4 Wired Zones(digital inputs), NC/NO, and Zone Name is editable
•  Siren out with 3.5mm jack
•  1 output(transistor output)
•  1 relay output, normal open contact, load:3A, 220Vac
•  1 temperature sensor channel, measurment rang: -55℃-125℃
•  configuration interface: USB
•  4g antenna connector (SMA, 50Ω)
•  Two 433MHz antenna connectors(SMA)
•  one Wi-Fi antenna connector (SMA)

wireless house alarm

4g security system

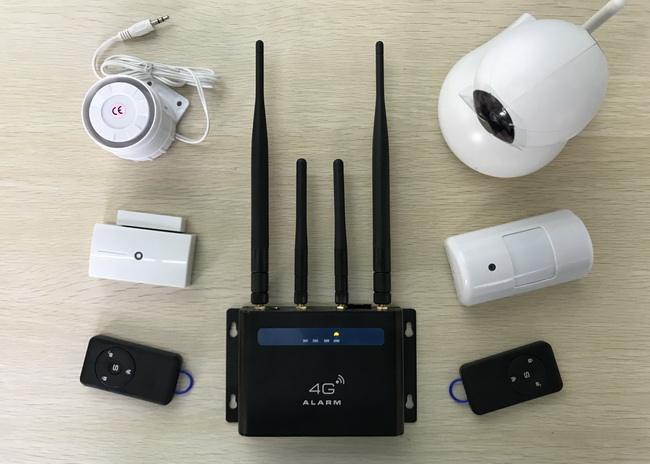

LTE GSM 4G Alarm System DIY 32 Sensors 4 Wireless Sirens 6 Wifi Camera Images
