Industrial 4G Alarm System Wireless PIR Sensor Motion Detector 1 OC Output

Industrial Usage GSM 4g Alarm System With Wireless PIR Sensor Motion Detector

Features

•  Creates Wi-Fi AP for Wi-Fi cameras and others Wi-Fi devices to connect 3G/4G network
•  Support Wi-Fi camera video linkage alarm when host alarm
•  32 Wireless Zones, Normal/Bypass mode and Zone Name is editable, 3 24-Hour zones for Panic button, smoke and gas leakage detector
•  Wirless PIR, door detector with smart characteristics, support offline alarm, low power alarm, not ready remind
•  Trigger up to 4 wireless sirens
•  Intelligent arm and disarm by schedule
•  Arm or disarm sms notifying is available
•  Can set 21:00pm to 07:00am night-silence mode
•  Smart temperature control and temperature low or high alarm
•  SMS reminder for power lost and recover
•  Support 10 cell phone numbers receive alarm
•  Can send sms commands to setup and operate
•  Supports timed task
•  Standby internal rechargeable battery with 10 hours power supply
•  Automatically update internal clock via sms
•  Alarm sms with timestamp
•  Can add GPS
•  Provide configure software
•  Using by APP

Interface

•  With 4 wired zones, support rename
•  Siren socket in (3.5mm)
•  1 output(transistor output)
•  1 relay output (3A, 220Vac, NO contact)
•  1 temperature sensor channel, measurment rang: -55℃-125℃
•  1 USB for configuration
•  GSM antenna SMA connector(50Ω)×1
•  Two 433MHz antenna connectors(SMA)
•  one Wi-Fi antenna connector (SMA)

wireless house alarm

4g home security system

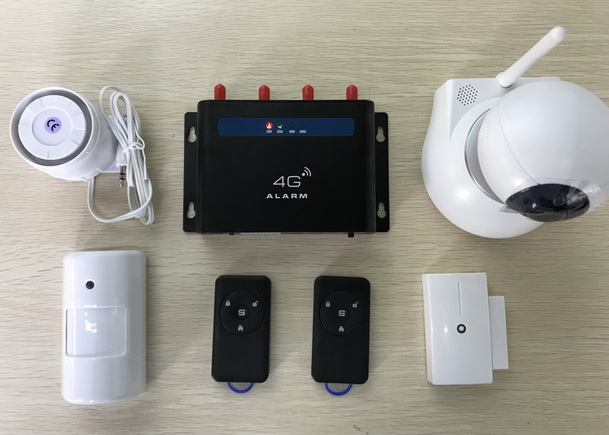

Industrial 4G Alarm System Wireless PIR Sensor Motion Detector 1 OC Output Images
