4 DI SMS Telemetry Module GSM RTU Controller Activate Output With Inside Battery

gsm sms telemetry module, gsm sms rtu control

System Feature

•  Cortex M3 32-bit ARM
•  Reliable performance with built-in double watchdog, 24×7 operation
•  Support signal fileter
•  Network-reconnect and retransmission to ensure data accurately transmit
•  Automatically or manually update interior clock by sms or NTP or server
•  Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
•  Event-based linkage programming, e.g. alarm linkage output
•  Easy used GUI configure software for setting up to 100 parameters
•  Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost

DI feature

•  Monitor dry contact(NO or NC)

DO(T) feature

•  Transistor output(drive voltage=power supply voltage, Drive current≤500mA)
•  on/off/pulse DO by remote control or local event
•  Status memory function for power lost

DO(K) feature

•  Relay NO output(load: 2A / 125VAC,220VDC)
•  on/off/pulse DO by remote control or local event
•  Remain down status when power lost

AI feature

•  Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
•  Convert 4-20mA(0-5V) to physical value
•  Can set parameters for value processing, alarm, data transmission
•  Detect connect or disconnect to alarm

SMS feature

•  Support 10 cell phone numbers for alarm and control
•  Any device alarm status can be sent by sending sms
•  All alarm and recover sms text can be edited
•  Query any IO channel’s status or value via sms command
•  Activate output by sending sms
•  Can set interval to report IO channel's status or value by sms
•  Remote setting via sms commands
•  Can query SIM card balance, sms forward
•  Support power lost sms alarm and recover sms(works with inside battery)

Wireless network communication

•  With 2g, 3g, 4g, Wi-Fi version
•  TCP/IP connect at most 4 servers(support Static IP address or domain)
•  Automatically Upload data when alarm or according to schedule
•  Communication protocol: Modbus TCP,http post, Cwt_IO(two-way communication)
•  Can forward data between wireless network with RS485 or RS232

3g sms controller

gsm sms controller

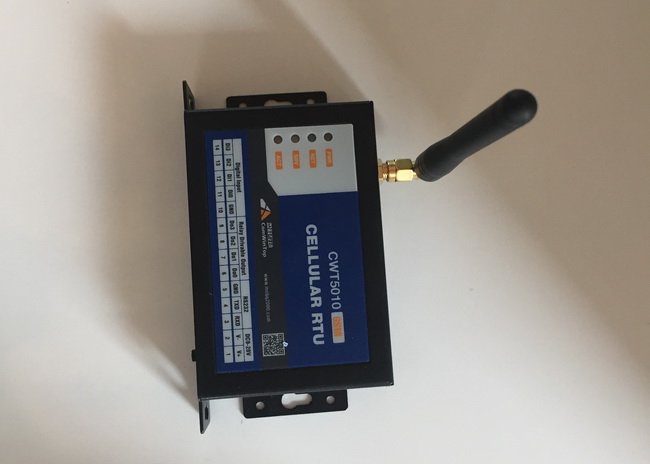

4 DI SMS Telemetry Module GSM RTU Controller Activate Output With Inside Battery Images
