Http Post Industrial IOT Gateway , IP30 Protection Internet Of Things Gateway

Industrial Gsm Gprs 3g Wifi Iot Gateway Internet Of Things Device Management

System Feature

•   Adopted highly integrated industrial 32-bit ARM MCU
•   Double watchdog to ensure stability
•   With signal filtering mechanisms
•   Stable reconnection strategy for data transmit
•   Automatically or manually update interior clock by sms or NTP or server
•   Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
•   Event-based linkage programming, e.g. alarm linkage output
•   Easy used GUI configure software for setting up to 100 parameters
•   Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost

DI feature

•  Monitor dry contact(NO or NC)

DO(T) feature

•  Transistor output(drive voltage=power supply voltage, Drive current≤500mA)
•  on/off/pulse DO by remote control or local event
•  Status memory function for power lost

DO(K) feature

•  Relay NO contact output(load: 2A / 125VAC,220VDC)
•  on/off/pulse DO by remote control or local event
•  Status memory function for power lost

AI feature

•  4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision)
•  Transduce 4-20mA(0-5V) to actual value
•  Can set parameters for value processing, alarm, data transmission
•  Sensor disconnect alarm

SMS feature

•  Can add 10 administrator numbers for alarm and remote control
•  Sms alarm when any IO channel triggered or out of preset normal range
•  Editable alarm and recover sms with time stamp
•  Query any IO channel’s status or value via sms command
•  Activate output by sending sms
•  Sms report any IO channel’s status or value on schedule
•  Remote setting via sms commands
•  Sms remind for sim card overdue
•  Sms alar for power lost and recover

Wireless network communication

•  Option network: cellular(2g/3g/4g) or Wi-Fi
•  Communicate with up to 4 servers(IP or domain) by TCP/IP
•  Support post or respond mode for data communication
•  Communicate with server by optional Cwt_IO, Modbus TCP, http post protocol
•  Transfer RS485 or RS232 Data to wireless network

Modbus feature

•  Can be modbus master read/write salve over RS485
•  Can work as a modbus slave to be read/write by master(HMI, SCADA etc.)
•  Support Modbus RTU to TCP convert over Ethernet or GPRS/3G

industrial iot gateway

internet of things devices

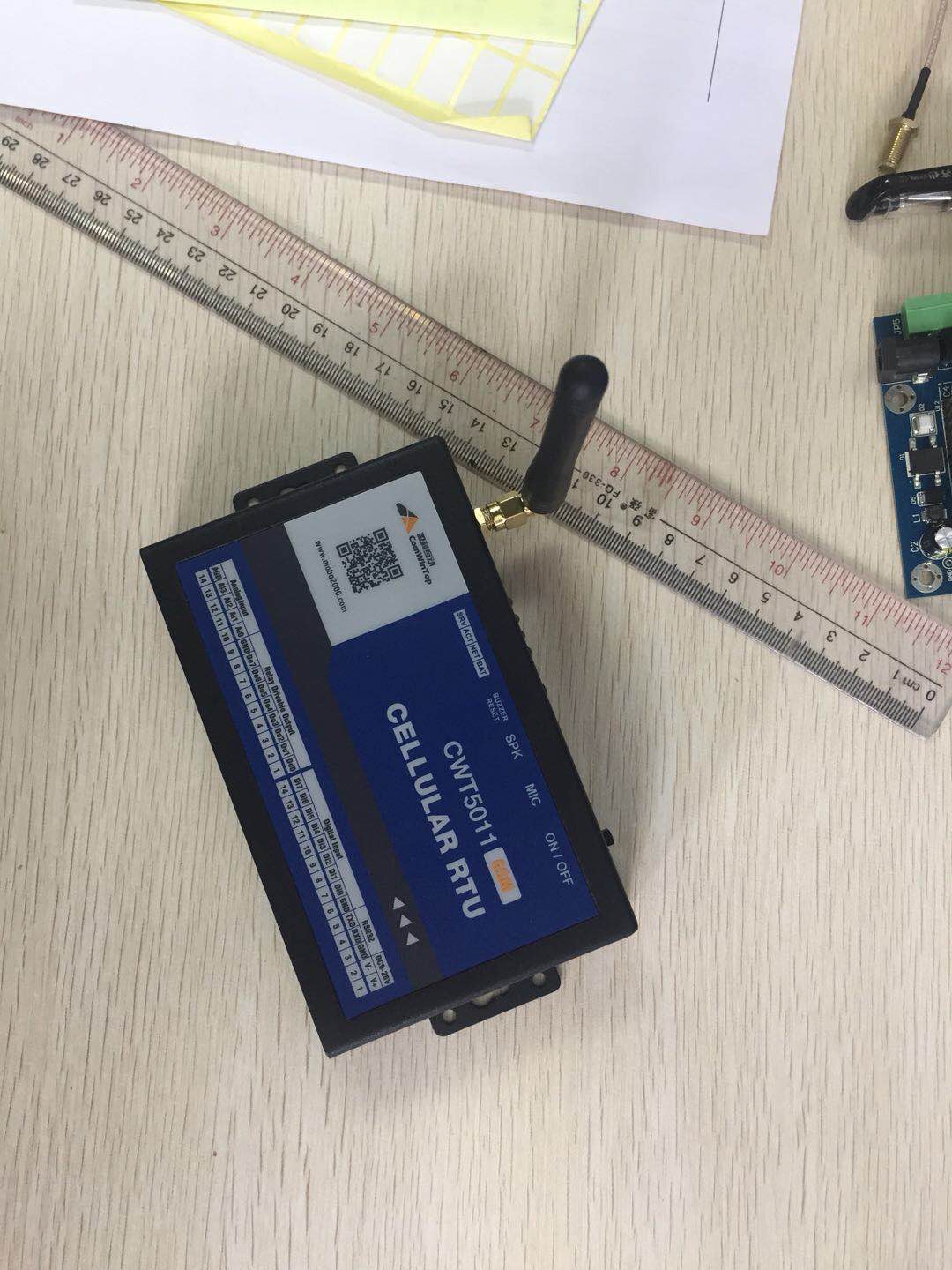

Http Post Industrial IOT Gateway , IP30 Protection Internet Of Things Gateway Images
