Pulse Counter Wifi Modbus Gateway , Data Acquisition Modbus GPRS Gateway

modbus pulse counter gateway, modbus data acquisition gateway

System Feature

•  Adopted highly integrated industrial 32-bit ARM MCU
•  24×7 working, soft and hardware Double watchdog
•  Dual digital filters for anti-noise
•  Support automatic network reconnection and data re-send
•  Automatically or manually update interior clock by sms or NTP or server
•  Configurable action schedule(second, minute, day, week, month)
•  Support Interlock programming, Event trigger
•  Provide configure software, visual programming, over 100 parameters can be set
•  Optional exterior rechargable battery for 8-20 hours working when power lost

DI feature

•  Trigger dry contact(NO or NC)

DO(T) feature

•  Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
•  on/off/pulse DO by remote control or local event
•  Remain down status when power lost

DO(K) feature

•  Relay NO output(load: 2A / 125VAC,220VDC)
•  Remote or local event activate DO on/off/pulse
•  Remember status when power lost

AI feature

•  4-20mA (option: 0-5V) in, Sampling frequency: 33Hz, 10-bit precision)
•  Convert 4-20mA(0-5V) to physical value
•  Configurable parameters for signal acquisition, alarm, data communication
•  Detect connect or disconnect to alarm

SMS feature

•  Preset 10 phone numbers (support distribute authority to receive sms)
•  Send sms alarm when input is triggered or reach alarm level
•  All alarm and recover sms text can be edited
•  Can send sms command to request any channel status or value
•  Control output via sms command
•  Can set interval to report IO channel's status or value by sms
•  Sending sms command to update setting
•  Sms remind for sim card overdue
•  Sms alar for power lost and recover

Wireless network communication

•  With 2g, 3g, 4g, Wi-Fi version
•  Communicate with up to 4 servers(IP or domain) by TCP/IP
•  Events(e.g. alarm, timer) trigger upload data
•  Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi
•  Can forward data between wireless network with RS485 or RS232

Modbus feature

•  Can work as a modbus master to poll salve over RS485
•  As a RS485 I O module to be polled by modbus master
•  Support Modbus RTU to TCP convert over Ethernet or GPRS/3G

ethernet modbus rtu

gateway modbus tcp rtu

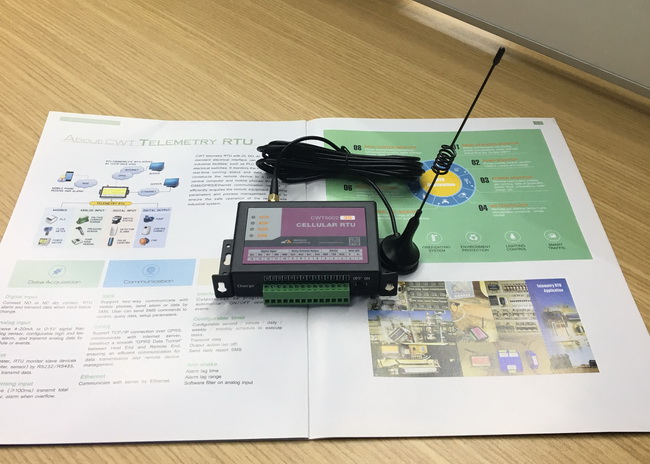

Pulse Counter Wifi Modbus Gateway , Data Acquisition Modbus GPRS Gateway Images
