Disconnect Alarm GSM Remote Terminal Unit , Data Transmission GSM SMS Alarm Controller

System Feature

• Industrial NXP 32-bit ARM MCU
• Reliable performance with built-in double watchdog, 24×7 operation
• Dual digital filters for anti-noise
• Stable reconnection strategy for data transmit
• Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
• Configurable action schedule(second, minute, day, week, month)
• Can automatically execute tasks according to preset Events
• Easy used GUI configure software for setting up to 100 parameters
• Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost

DI feature

• Monitor dry contact(NO or NC)

DO(T) feature

• Relay drivable output(drive voltage=power supply voltage, Drive current≤500mA)
• Remote or local event activate DO on/off/pulse
• Remain down status when power lost

DO(K) feature

• Relay output(NO, contact load: 2A / 125VAC,220VDC)
• DO can be activated by remote or local schedule
• Remain down status when power lost

AI feature

• Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Can set parameters for value processing, alarm, data transmission
• Sensor disconnect alarm

SMS feature

• Preset 10 phone numbers (support distribute authority to receive sms)
• Send sms alarm when input is triggered or reach alarm level
• Editable alarm and recover sms with time stamp
• Query any IO channel’s status or value via sms command
• Activate output by sending sms
• Configurable schedule for sms report IO channel's status or value
• Remote update parameters by sms
• Sms remind for sim card overdue
• Sms alar for power lost and recover

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• Communicate with up to 4 servers(IP or domain) by TCP/IP
• Events(e.g. alarm, timer) trigger upload data
• Support http post, Modbus TCP, CWT protocol over cellular or Wi-Fi
• Can forward data between wireless network with RS485 or RS232

gsm remote terminal unit

gsm sms controller

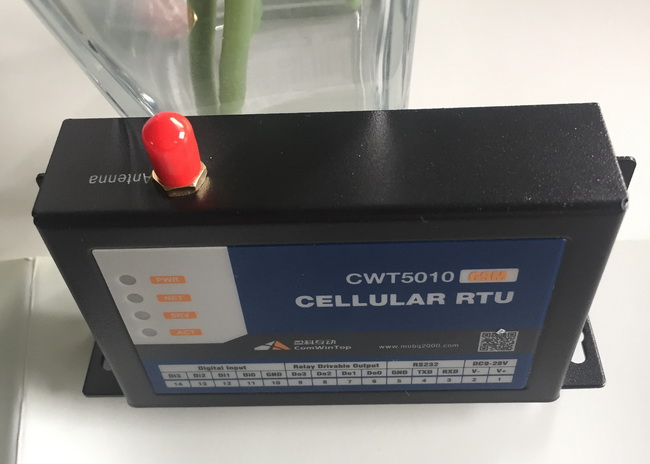

Disconnect Alarm GSM Remote Terminal Unit , Data Transmission GSM SMS Alarm Controller Images
